Amazon CloudFront can provide a global entry point for applications that call backend APIs over gRPC. The configuration has several non-negotiable requirements: the cache behavior must support HTTP/2, allow POST requests, and have gRPC enabled, while the origin must support TLS and HTTP/2. CloudFront proxies gRPC traffic but does not cache gRPC responses. Its value here is a consistent domain, TLS termination, security controls, and global edge connectivity—not a reduction in origin requests through response caching.

How the gRPC request path works

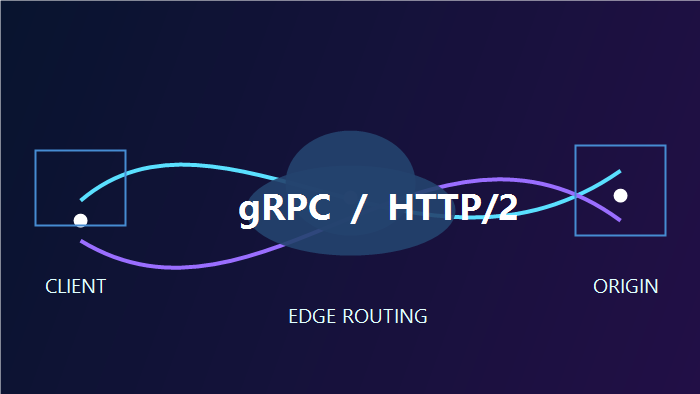

A client first establishes an HTTPS and HTTP/2 connection with a CloudFront edge location. CloudFront then forwards the request to the configured origin. The origin can be an Application Load Balancer, a self-managed gateway, or another publicly reachable HTTPS endpoint that supports gRPC.

gRPC requests normally use POST, with a content type such as application/grpc. Because CloudFront does not cache the RPC response, every call still reaches the origin. Capacity planning must therefore include the load on the ALB, containers or EC2 instances, application logs, databases, and other backend dependencies.

The design is useful for APIs serving users in multiple regions. A team can reuse CloudFront certificates, AWS WAF policies, access controls, and a single public hostname. End-to-end latency still depends on the distance from the edge to the origin, application processing time, connection reuse, and downstream services.

Requirements before you configure CloudFront

Clients must use HTTPS and HTTP/2

CloudFront gRPC support is designed for HTTP/2 requests. Set the Viewer protocol policy to HTTPS only or redirect HTTP to HTTPS. Native gRPC clients normally connect over TLS, so testing the endpoint like an ordinary HTTP/1.1 REST API can produce misleading results.

The cache behavior must allow POST

The Allowed HTTP methods setting must use the method group that includes GET, HEAD, OPTIONS, PUT, POST, PATCH, DELETE. You must then enable gRPC requests for that behavior. A behavior limited to GET and HEAD rejects an RPC before it reaches the origin.

Allowing every method increases the exposed surface. Create a dedicated behavior for the gRPC path, such as /package.Service/*, and protect it with authentication, rate controls, and AWS WAF rules appropriate for the application.

The origin must support TLS and HTTP/2

The origin port, certificate name, and Origin protocol policy must agree. With an Application Load Balancer, verify the listener, target group protocol version, and health checks against the actual gRPC service. An expired certificate, hostname mismatch, unhealthy target, or failed TLS handshake may appear to the client as a generic gateway or availability error.

Required metadata must reach the origin

Bearer tokens, custom gRPC metadata, tenant identifiers, and trace IDs are commonly carried in request headers. Use an Origin request policy that forwards the headers the application needs. Forwarding every header without review makes the behavior harder to reason about and can expose unnecessary request data to the origin.

Configuring gRPC delivery through CloudFront

Step 1: Verify the origin directly

Before adding CloudFront, call the origin hostname with grpcurl or the production client. Test a specific method, TLS validation, authentication, and connection stability. If the direct origin call fails, adding a CDN introduces another layer without fixing the underlying service.

Step 2: Add or update the origin

Add the origin hostname to the distribution and configure CloudFront to connect over HTTPS. Match the Origin protocol policy, HTTPS port, and TLS settings to the origin. For an ALB, use the load balancer DNS name or a custom origin hostname covered by the certificate presented to CloudFront.

Step 3: Create a dedicated cache behavior

Set a Path pattern for the gRPC service, select the intended origin, and check the following values:

• Use Redirect HTTP to HTTPS or HTTPS only for Viewer protocol policy.

• Select the Allowed HTTP methods group that includes POST.

• Make sure HTTP/2 is enabled for viewers.

• Enable gRPC requests on the behavior.

• Attach an Origin request policy that forwards only the required headers.

TTL tuning is not the focus because CloudFront does not cache gRPC responses. Method permissions, HTTP/2, origin TLS, header forwarding, and timeouts are the settings that determine whether the RPC succeeds.

Step 4: Add WAF and access controls

For a public distribution, apply rate controls and any suitable IP, geographic, or token-based restrictions. gRPC uses binary messages, so rules written for URL parameters and ordinary form bodies may not understand the RPC payload. Test new rules in Count mode first and review matched requests before blocking traffic.

Step 5: Test through the CloudFront hostname

Call the CloudFront domain with the same client configuration used in production. Record DNS, TCP, TLS, and time-to-first-response measurements along with the gRPC status, HTTP status, x-amz-cf-id, origin request ID, and application log entry.

A single successful call confirms only the basic path. Pre-production testing should also cover client cancellation, server errors, idle connections, retries, rate limiting, larger messages, concurrency, and rolling origin deployments.

Troubleshooting common failures

HTTP 403 or method not allowed

Confirm that the request matched the intended behavior. Check that Allowed HTTP methods includes POST and gRPC is enabled. If AWS WAF is associated with the distribution, review sampled requests and logs for a blocking rule. An incorrectly ordered path pattern may send the request to the default GET/HEAD-only behavior.

HTTP 502 or a TLS handshake failure

Inspect the origin certificate, certificate hostname, port, and Origin protocol policy. The certificate must be valid for the hostname CloudFront uses when connecting to the origin. An ALB with unhealthy targets can also produce a gateway error, so correlate CloudFront results with load balancer health and application logs.

The client reports UNAVAILABLE

UNAVAILABLE tells you that the call could not complete at that moment; it does not identify the failing layer. The cause may be the client network, CloudFront, the load balancer, a proxy, or the application. Align the client timestamp, HTTP status, x-amz-cf-id, origin request ID, and application logs to isolate the failure.

Metadata is missing at the application

Check whether the Origin request policy forwards the relevant header. Then inspect the ALB, reverse proxy, service mesh, and application framework for rules that remove or rename it. Do not write complete authorization tokens into logs. Logging presence, a safe hash, or a correlated request ID is usually enough for diagnosis.

Long-running calls are interrupted

Streaming and long-running RPCs can cross several timeout boundaries. Compare the client deadline, CloudFront origin response timeout, ALB idle timeout, proxy timeout, and application deadline. Determine which component closes the connection first before increasing multiple timeout values.

Deployment, monitoring, and rollback

Start with a test hostname or a limited client group. Monitor error rate, p50/p95/p99 latency, concurrent origin connections, target health, and client retry counts. Keep request IDs that can connect CloudFront, load balancer, and application logs, but exclude tokens and sensitive metadata.

Prepare rollback before changing production traffic. Keep the previous gRPC hostname available so DNS or client configuration can return to the old entry point. Another option is restoring the earlier cache behavior and waiting for the CloudFront configuration to deploy. DNS TTL, reused client connections, and configuration propagation all affect how quickly a rollback takes effect.

Frequently asked questions

Does CloudFront cache gRPC responses?

No. CloudFront proxies gRPC requests but does not cache gRPC responses. Each RPC still reaches the origin.

Does this work over HTTP/1.1?

CloudFront gRPC support depends on HTTP/2. Validate the client, viewer behavior, and origin path as gRPC over HTTP/2.

Can the same distribution continue serving REST APIs?

Yes. A common design uses a dedicated behavior for gRPC paths while other paths retain their REST API, static file, or download settings. Avoid applying the gRPC behavior's broad method permissions and forwarding policy to unrelated content.

Will CloudFront always reduce gRPC latency?

No. The client-to-edge portion may improve, but the request still travels from the edge to the origin. Origin location, processing time, connection reuse, and backend dependencies determine the final result. Test with real client regions and realistic RPC patterns.

Is gRPC-Web the same as native gRPC?

No. Browsers commonly use gRPC-Web and may require a proxy or protocol translation layer. Confirm the client protocol and gateway capabilities before applying a native gRPC design.

Conclusion

A CloudFront gRPC behavior has relatively few settings, but one mismatch can leave the client with a generic connection error. Validate the origin first, then configure a dedicated path, POST support, HTTP/2, gRPC enablement, and the required request headers. Correlating CloudFront, load balancer, and application logs with request IDs makes 403, 502, UNAVAILABLE, and timeout failures much easier to locate.

CloudFlew provides CDN services based on AWS CloudFront. Before adding a global entry point for an API or gRPC service, document client regions, RPC methods, concurrent connections, message sizes, and the origin architecture. Actual feature availability and service terms are subject to the purchase page and service agreement.
